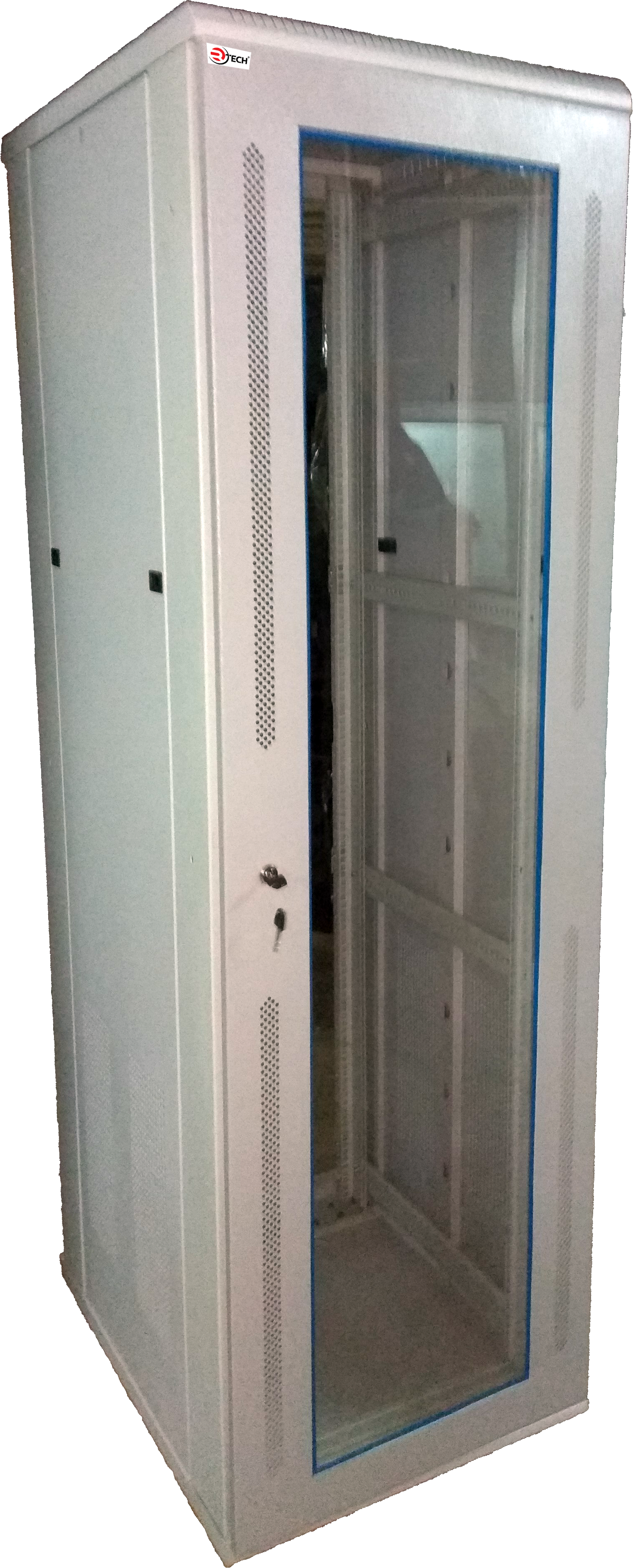

Floor Standing Networking 36U Server Rack (600X1000mmD)

Get a Price/Quote

MOQ : 1 Number

Floor Standing Networking 36U Server Rack (600X1000mmD) Specification

Model
36U 600x1000mmD

Product Type
Floor Standing Networking Server Rack

Connector
Universal mounting holes for 19 equipment

Flow Type
Front-to-rear airflow design

Usage & Applications
Data centers, server rooms, network equipment housing, IT infrastructure

Heat Transfer
Ventilated roof and side panels, supports fan units

Size
36U

Material
High-grade cold rolled steel

Capacity
36U

Rack Capacity
36U

Rack Unit Width
600mm

Rack Depth
1000mm

Max Load
800 kg (typically, may vary by brand)

Surface Finish
Powder Coated

Cable Entry
Top and bottom cable entry plates

Cooling Support
Up to 4 fan kits (optional)

Caster Wheels
Heavy-duty wheels for mobility (with leveling feet)

Assembly
Flat-packed, easy to assemble

Mount Rail Type
Adjustable 19" mounting rails, numbered U positions

Number of Doors
Front glass door, rear perforated metal door

Color
Black (RAL 9005 or similar)

Standards
Complies with ANSI/EIA RS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92

Lock Type
Cam lock with key for door security

Side Panels
Removable, with locks

Floor Standing Networking 36U Server Rack (600X1000mmD) Trade Information

Minimum Order Quantity
1 Number

Supply Ability
10 Per Day

Delivery Time
1 Days

Main Domestic Market
All India

About Floor Standing Networking 36U Server Rack (600X1000mmD)

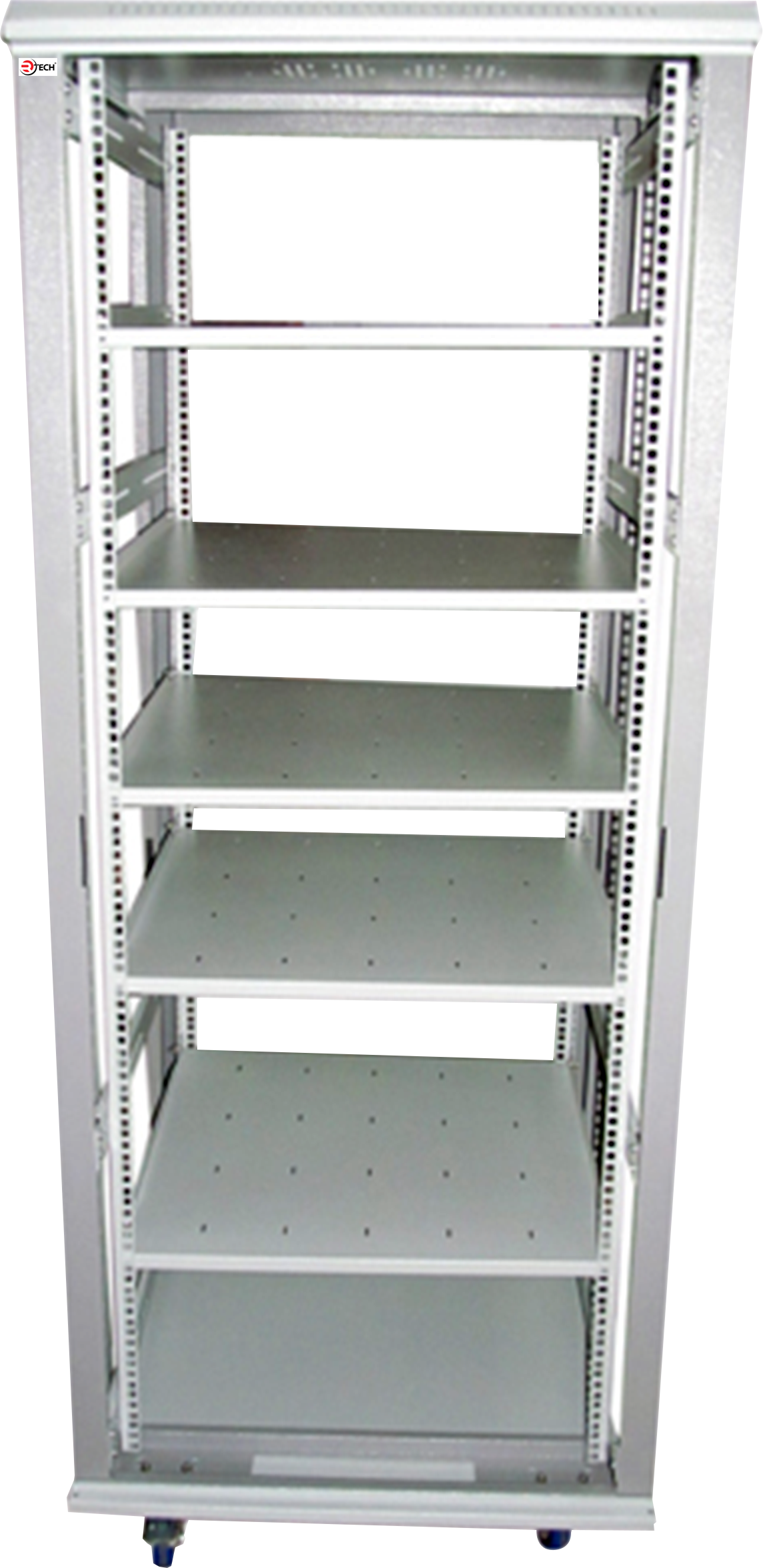

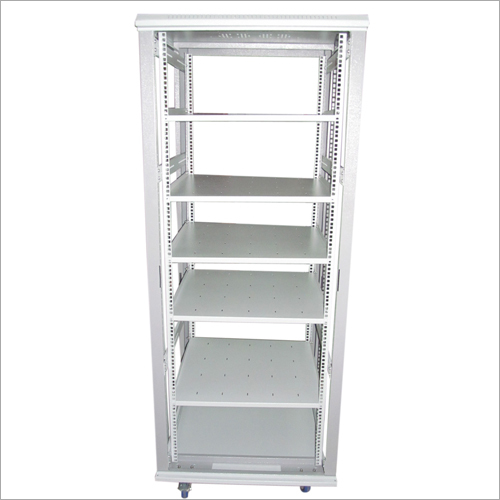

R Tech Floor Standing Steel Series Racks designed for,Servers, Networking, Data Centers, Audio Video, Telecom and Lab applications.Racks are fabricated out of CRCA steel welded and Powder coated with highestquality standard under stringent ISO 9001-2015 manufacturing & qualitymanagement system to ensure highest quality product. Configuration will be forstandard racks are welded frame with vented top and bottom panel withventilation and Cable entry provision. Four folded profile depth channels to additionallysupport the racks. Removable side panels partially vented for better aircirculation.

Vented top cover with fan mounting provision, Front Glass orperforated Metal door with lock and key and back Vented or perforated metaldoor with lock and key. Free standing on floor with 4 No. castors wheels, 2 No.with breaks and 2 no without breaks. Levelers or Plinth can be provided onrequest.

Racks are available from 18U to 42U Variants with 600mm, 800mm,1000mm and 1200mm Depth configuration. available in welded or CKD.
